MySchedule

This module improves the management of Dolibarr's native job sheets by adding: a calendar view (in week and month mode) drag & drop and line enlargement functions user assignment contact/address assignment quick creation of a job (and one or more job lines) quick modification of a job and the job detail line ​​bulk change of statuses and other elements

Overview

The MySchedule module allows you to manage work assignments and, more precisely, the time scheduled and completed by employees.

Jobs have four stages specific to mySchedule:

• No User Assigned: There are no users associated with the job
• Not Yet Scheduled: There is at least one user associated with the job, but they are not yet assigned to a job detail line
• ​​Job lines are all assigned to one (or more) users
• Completed: The times completed by the users have been entered on the job

Each of these stages is associated with a color code that is used to display jobs in the calendar view

It is possible to filter by week, month, stakeholder, third party, stage and intervention status

Settings

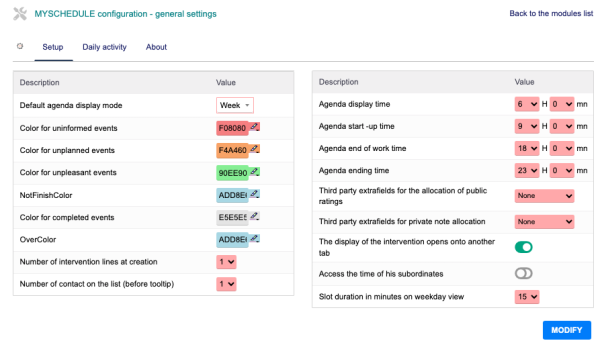

Module configuration is done via the module administration page, which can be accessed by following the Home > Configuration > Modules menu and clicking the icon at the end of the line.

From this screen, you can configure: the default access to the calendar view for a week or a month the 4 colors corresponding to the different states of the intervention the time slots (start and end of day, start and end of activity) for the weekly view the number of intervention lines (from 1 to 4) that can be entered when creating the intervention from the calendar the number of contacts/users that can be displayed in the lists before concatenating them in a tooltip the extrafields available on the third party to populate the public and private notes of the intervention (useful for access codes and instructions specific to each intervention for this third party) define whether you want to open the intervention on the same tab or a different one from the editing pop-up

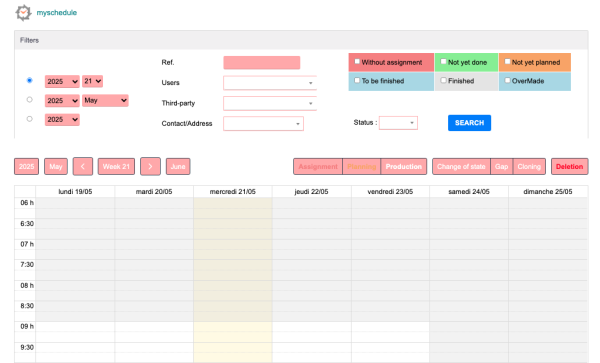

Main Screen

Accessible from the Commercial/Intervention/mySchedule menu, this is the main screen of mySchedule.

It is divided into four parts: Filtering and selecting events Navigating between weeks and months Bulk action on events The calendar view for either a week or the entire month The following actions can be performed in the calendar view: Create a new intervention Modify a new intervention (with a link to the classic intervention interface) Move an intervention (drag & drop) Resize an intervention

Filtering and Selection

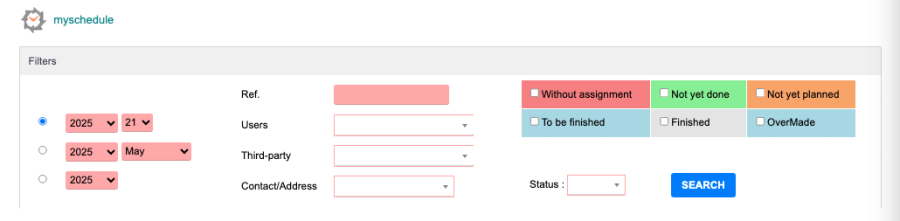

The filtering interface is divided into three parts:

on the period and status to display	on the native elements of the interventions	on the associated statuses managed by mySchedule
the current week and year the current month and year the status of the intervention (draft, validated, invoiced, completed)	The third party of the intervention A user associated with the intervention An external contact or address associated with the intervention	You can select multiple items at once; if none are selected, they are all selected.

These filters are found in the intervention lists for third parties and users.

For the remainder of this document, we will use the term "state" or "status" to refer to the status of the intervention and "stage" to refer to the progress stage of mySchedule.

Bulk Actions

MySchedule allows you to perform bulk actions on work items.

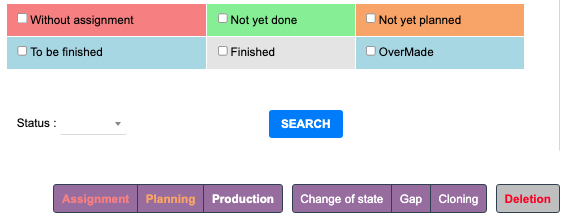

Mass actions are accessible from the main screen using the buttons on the screen.

The first group of actions corresponds to mass changes specific to mySchedule. The font color corresponds to the step where this action is performed. * Assignment: Allows you to manage the workers associated with the intervention

• Scheduling: Allows you to assign the time to be completed at the event level to one or more employees
• Execution: Allows you to assign the time completed at the event level to one or more employees

The second group corresponds to actions specific to Dolibarr:

• Changing the status of the intervention
• Shifting the intervention lines in time
• Cloning an intervention and its intervention lines (in two steps)

Mass deletion of intervention lines is part of this second group but is set aside for security reasons...

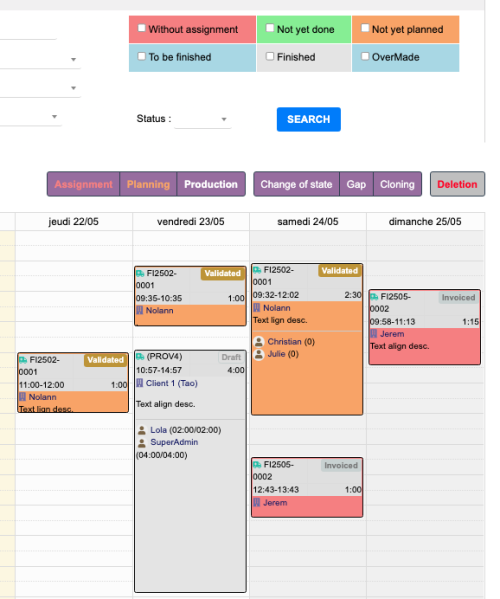

Events in the Calendar View

The calendar view displays the event detail lines. Each event detail line is defined by a start date and time, a duration, a description, and the event to which it is attached.

In the rest of the document, the term "event" will be used to refer to a native Dolibarr intervention line.

Each event is divided into three parts: The gray block containing the intervention line information The intervention reference and its status (first line) The start and end times of the intervention line and its duration (second line) The main description of the intervention is shown as a tooltip of the icon Additional information about the intervention The third party associated with the intervention The description of the intervention line The contract or project, if one has been entered The participants area (user only) The planned and actual durations, if they have already been entered in week view, the event display may be truncated because the height of the event corresponds to its duration

The calendar displays the events occurring during the period. In week view, they are positioned according to their start and end times. You can directly modify the date, start time, and duration/end time of the event by dragging and dropping them and enlarging them. Please note that some information may be truncated in this view due to the size of the event and its duration. In month view, they are positioned one after the other. You can directly modify the start date of the event by dragging and dropping them.

Creating an Intervention

When you click a button at the day level, an intervention creation pop-up window appears. This allows you to enter the following information:

• Third party associated with the intervention (if the Fullcalendar view is filtered to a third party, this third party is assigned by default)
• Description of the intervention (simple text field)
• Public and private notes (simple text field)
• One or more intervention lines (number can be configured) with the following columns:
  • The participant/user associated with the intervention line (optional entry; by default, the user entering the information or the one filtered in the display)
  • Description of the intervention line
  • The start date and time of the intervention line (the date is taken from the day that was clicked)
  • The duration of the intervention

The start time of the intervention line is taken from the time slot clicked on the weekly view, for the monthly view, it corresponds to the start of the configured working hour

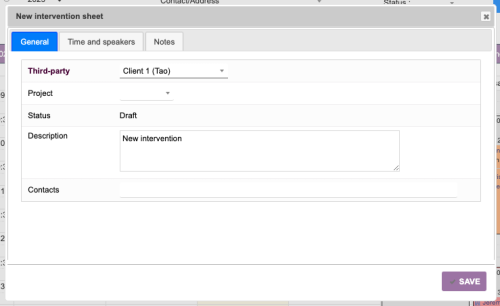

Main Tab

The first tab allows you to enter information specific to the intervention: The third party associated with the intervention The description of the intervention The list of contacts/addresses related to the intervention If they are active in Dolibarr, contracts and projects also appear in this tab. The status of the intervention is draft by default. By default, the intervention is always in draft status.

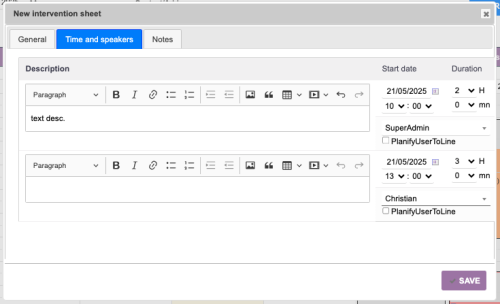

Intervention Lines / Events Tab

The second tab allows you to enter one or more intervention lines (depending on the settings). The data that can be entered for each line is: A participant associated with the intervention line ​​The description, which can be entered in WYSIWYG The intervention start date and time The duration of the intervention line If you enter a participant, they are automatically associated with the intervention sheet, and the times entered for the line are assigned to them as "planned"

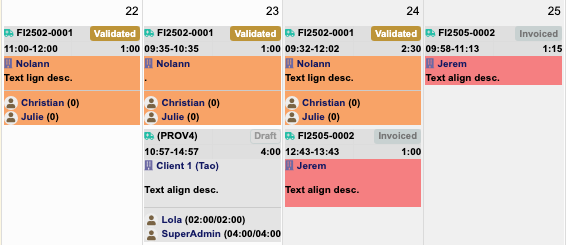

Once the entry is validated, the intervention lines appear on the calendar. There are as many events as there are intervention lines.

Modification of an intervention

When you click on an event, a pop-in window appears to edit the intervention. The window's banner displays the intervention's reference and the color of the event's stage. The pop-in has three tabs:

• a tab for data specific to the intervention (third party, status, contract, and project if active)
• a user management tab associated with the intervention and the intervention line
• ​​a tab for public and private notes

A badge appears on the user and note tabs if they are entered.

It is also possible to open the intervention in "classic" mode (either on the same tab or another, which is configurable).

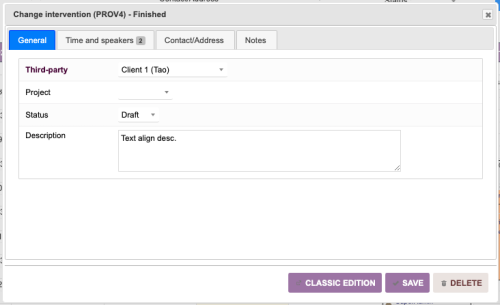

Main Tab

The first tab allows you to modify the following elements: The third party associated with the intervention The description of the intervention The status of the intervention If they are active in Dolibarr, contracts and projects also appear in this tab. If there is information entered in the attached tabs, a badge appears indicating the amount of information present on it. You can directly delete the intervention line (see the intervention if it no longer has a line) from this screen (delete button).

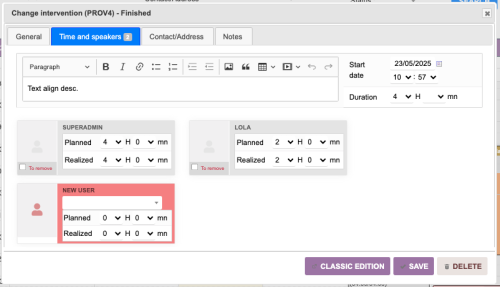

Collaborators Tab

The second tab allows you to edit both the intervention line (description, duration, and start date and time) and the contributors. For contributors, you can: Add a contributor Delete a contributor Enter the duration assigned to a contributor Enter the duration spent by a contributor The entries made on this screen allow you to modify the event stage.

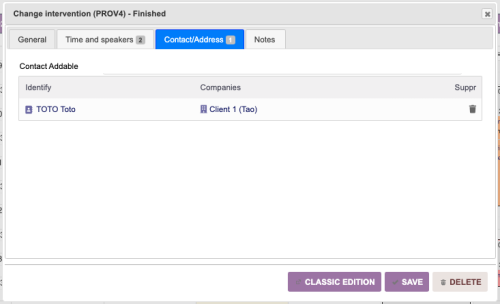

Contacts/Addresses Tab

The third tab allows you to manage the selection of contacts/addresses associated with the intervention. For the intervention, you can: Add one or more addresses Delete one or more addresses

Bulk Action Management

In the mySchedule view, you can perform bulk actions:

• Deleting work lines and the work order if it no longer has an associated work order
• Moving work lines to another week
• Cloning work lines and the associated work order
• Changing the worker(s) on the work order line
• ​​Changing the work order status (draft, validated, invoiced, completed)

This mass update will be performed as follows:

• Filter the fullCalendar view for the week containing the items to be modified.
• Press one of the buttons in the top right corner of the screen.
• A window displaying the events appears (items cannot be moved). Each event can be selected by simply clicking on it.
• It is possible to mass-check/uncheck a row (day) or the entire week to select the items to be processed.
• For user modification, a pre-entered user drop-down list is available that can be modified.
• For cloning and moving, you will need to enter the week number and year to which the events will be moved or cloned.
• Once the screen is validated, return to the starting date range.

Employee Time Management

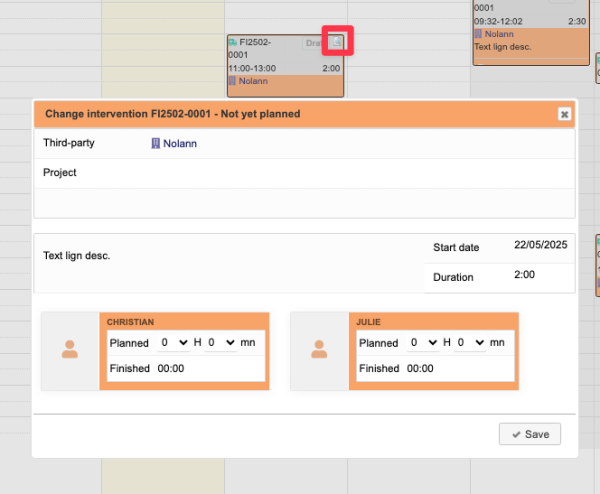

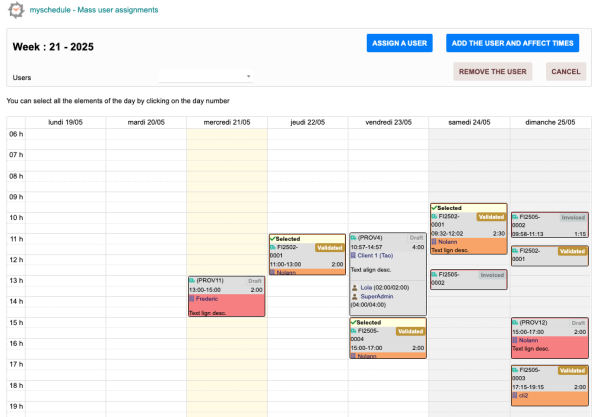

User Assignment

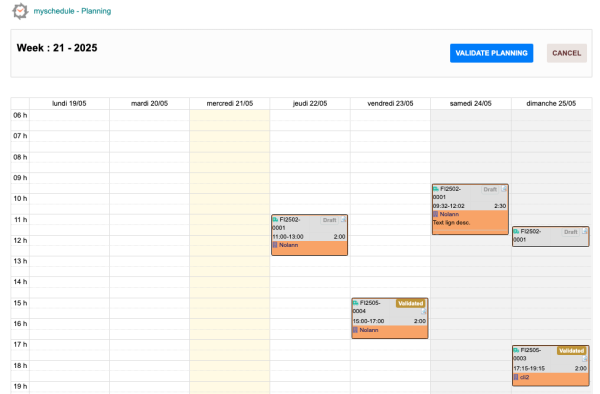

Employee Scheduling

Intervention Tabs

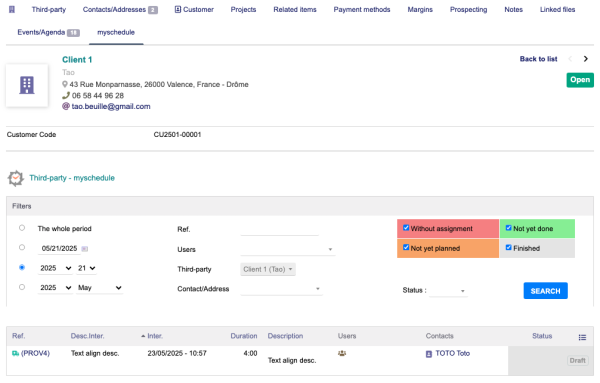

For third parties and users, a myShedule tab displays the list of third-party/user interventions. This list can be filtered.

List of third-party interventions
